Welcome to EPower Maps

EPower Maps is a field data-collection app for electrical infrastructure. Use it on Android and iOS to capture pole GPS, attach accessories, manage cable and transformer catalogs, sync with the server, and export a KMZ map of everything you collected to Google Earth — even when offline.

What this guide covers

Overview & field workflow

Steps1–4

PathDashboard → Collect → Maps → Sync

Where you land + what a typical day looks like

Admin catalog

Steps5–13

PagesAccessories · Packages · Places · Pole Style · Transformers · Cable Style · Transformer Style · Cable · Distribution Method

Manage the master data your collections rely on

Setup & extras

Steps14–18

PagesMulti-tenant · Settings · Developer Mode · AI ERA Chat · Navigation map

One-off setup and power-user features

Appendix

PartsA — D

TopicsData model · architecture · backend API · references

For integrators / support engineers

Before you start

Install the app on Android (API 21+) or iOS.
Grant Location permission (required) plus Camera (for QR tenant scan), Microphone (voice input for AI ERA), and Biometric (optional).
Register your organisation by scanning the tenant QR code (Settings → Manage Tenants → Scan QR) — see step 14.
Run an initial sync (Communication tab → Import Data) to pull your catalog from the server — see step 4.
You're ready: the app opens to Dashboard (step 1). Switch to the Collect tab to start capturing poles (step 2).

Tip: Each section ends with a "Try it yourself" walkthrough — tick the boxes as you go to track your progress (the page remembers your ticks). Use the language toggle at the top-left to switch between English and ខ្មែរ.

Offline-first: The app works fully offline. Anything you save while offline is queued and auto-synced the moment connectivity returns (Wi-Fi, mobile data, VPN — all count as online). You will not lose work.

1. Dashboard & Analysis

Counts are server-authoritative: GET /Dashboard returns AccessoryCount, PackageCount, PlaceCount, PoleCount, StyleCount, CableStyleCount, TransformerStyleCount, TransformerCount, CollectedCount, NotCollectedCount.
Overview card: linear bar (collected vs not-collected) — non-collected slice rendered in red.
Interactive donut chart: tap a slice → swaps the body chart / tab; not a static image.
Pie chart (fl_chart) of collected vs. uncollected poles + per-area breakdown.
Resilient: each dao.queryCount wrapped in safeCount(); on failure shows error UI with retry button instead of spinning forever.
Lucide icons used across new admin tiles (cable, line-style, transformer-style) for visual consistency with existing entities.

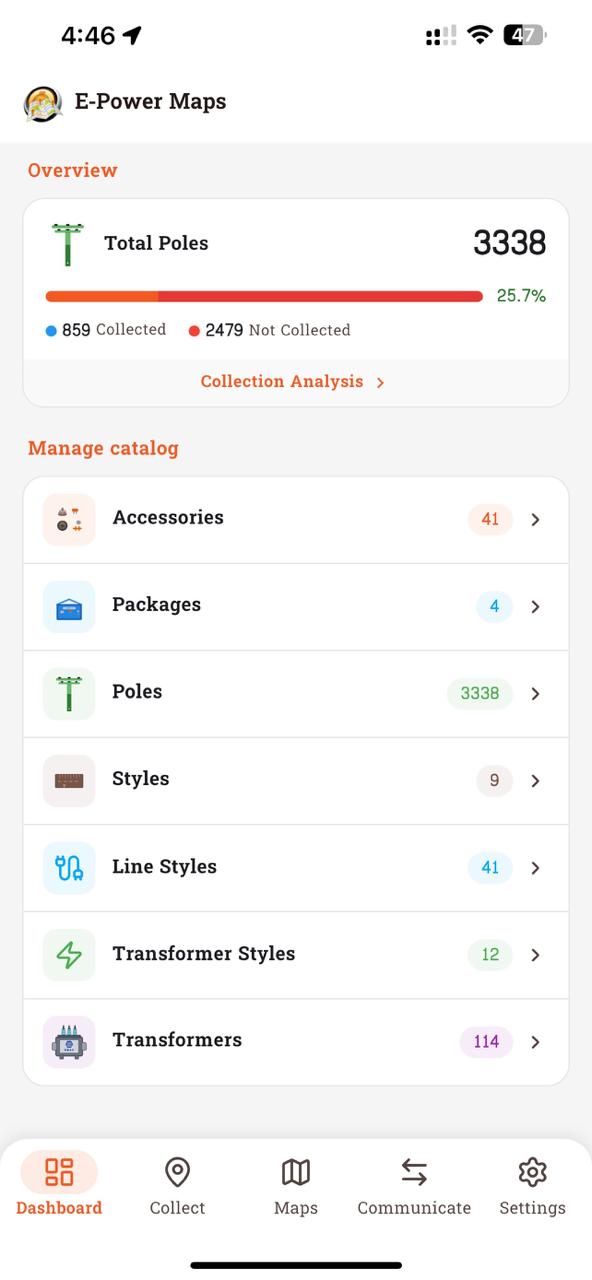

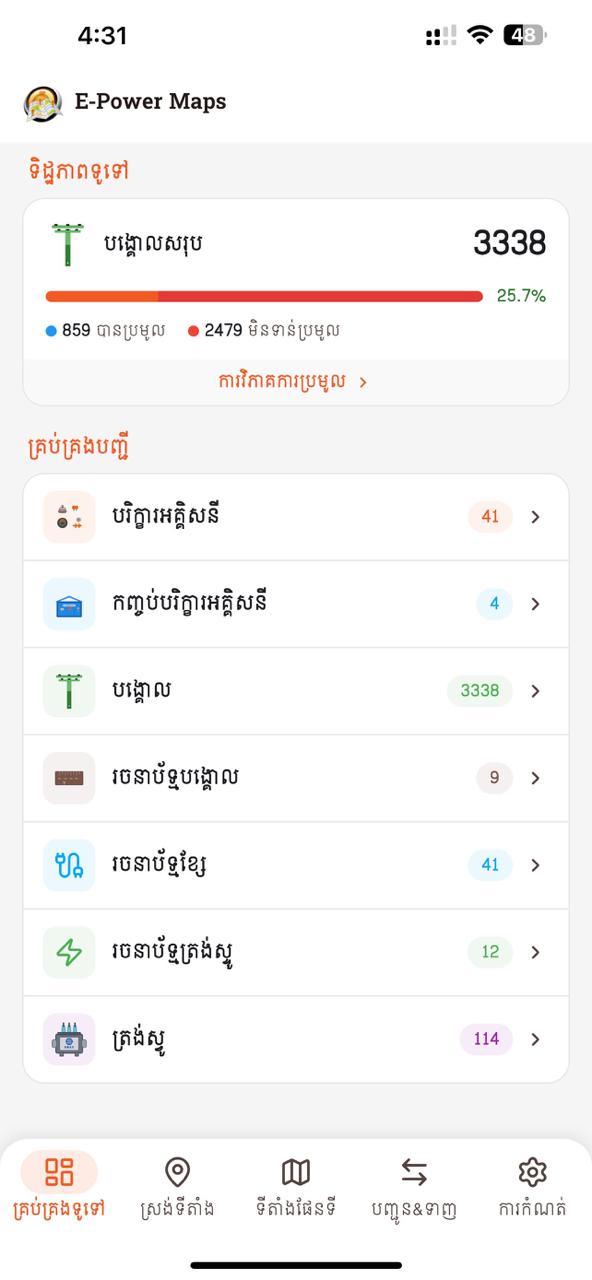

The Dashboard screen

1Overview card — total Places, collected vs. pending counts, and a thin progress bar. Tap to drill into the Analysis charts.
2Manage Catalog — coloured icon tiles for each catalog (Accessories, Packages, Places, Pole Style, Transformers, Cable Style, Transformer Style, Cable, Distribution Method). Counts pulled from /Dashboard.
3Pull-to-refresh anywhere on the page to fetch fresh counts.
4Dashboard is the first tab and the post-splash landing screen.

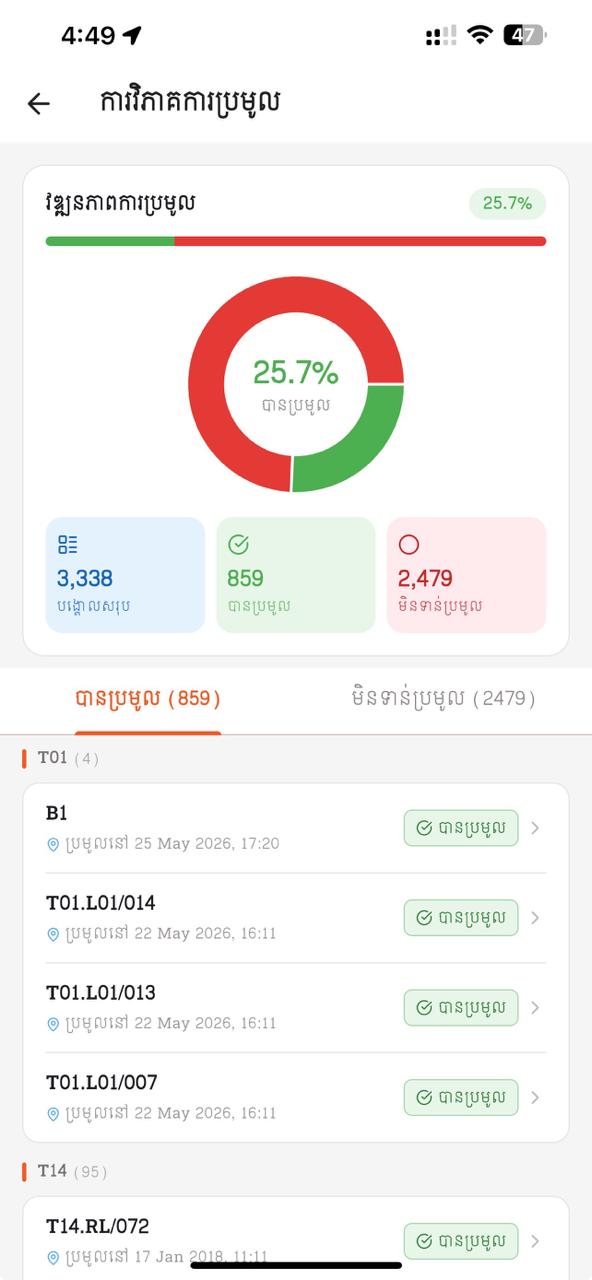

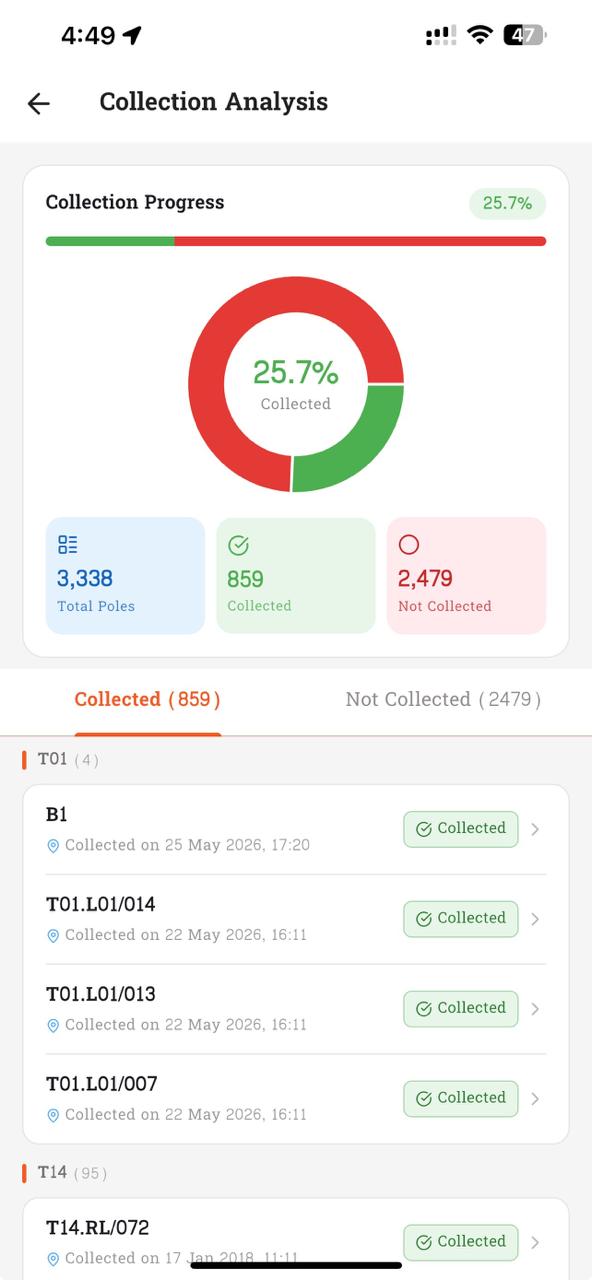

Collection Analysis — drill-down

Tap the Overview card on Dashboard to open Collection Analysis: a progress bar, donut chart of the collected-vs-not-collected split, three count tiles, and a tab list of every pole grouped by area.

1Collection Progress bar — green = collected portion, red = not-collected. The percentage chip on the right mirrors the donut centre.
2Donut chart — interactive. Tap a slice to switch the focus between the Collected and Not-Collected lists below.
3Three count tiles — Total Poles / Collected (green tick) / Not Collected (red ring). Numbers come straight from /Dashboard.
4Tabs — "Collected (n)" and "Not Collected (n)". The active tab is underlined in orange.
5Pole list — grouped by area (T01, T14 …). Each row shows pole code, collection date, and a green "Collected" pill on the Collected tab; tap a row to open the pole's Place detail.

Try it yourself

Counts match the totals per admin list.
After a new collection, analysis chart refreshes within the same session.

2. Collect — Capturing a pole

The core workflow used by field technicians to capture a pole's GPS, style, ownership, and accessories.

Open Collect — the second tab of the bottom navigation. (The first is Dashboard; see chapter 1.)
Place picker with search + "Add New Pole" inline sheet.
New pole uses Place detail page (same ALL-CAPS + duplicate check + distinct-area picker).
GPS via geolocator stream; distinct error states (service off / permission denied / forever / stream error) each with Snackbar + Settings shortcut.
Same visual cues retained: collected poles stop live updates and show stored coords in primary color; live updates render in the theme accent color. Accuracy figure shown in real time.
Same style picker + ownership toggle; collected-vs-live color cue retained.
Same accessory + package selection; quantities editable inline.
Save persists locally and syncs to API — or queues to pending-sync when offline.
Prev/Next retained. Multi-tenant aware: no tenant → writes to default DB.

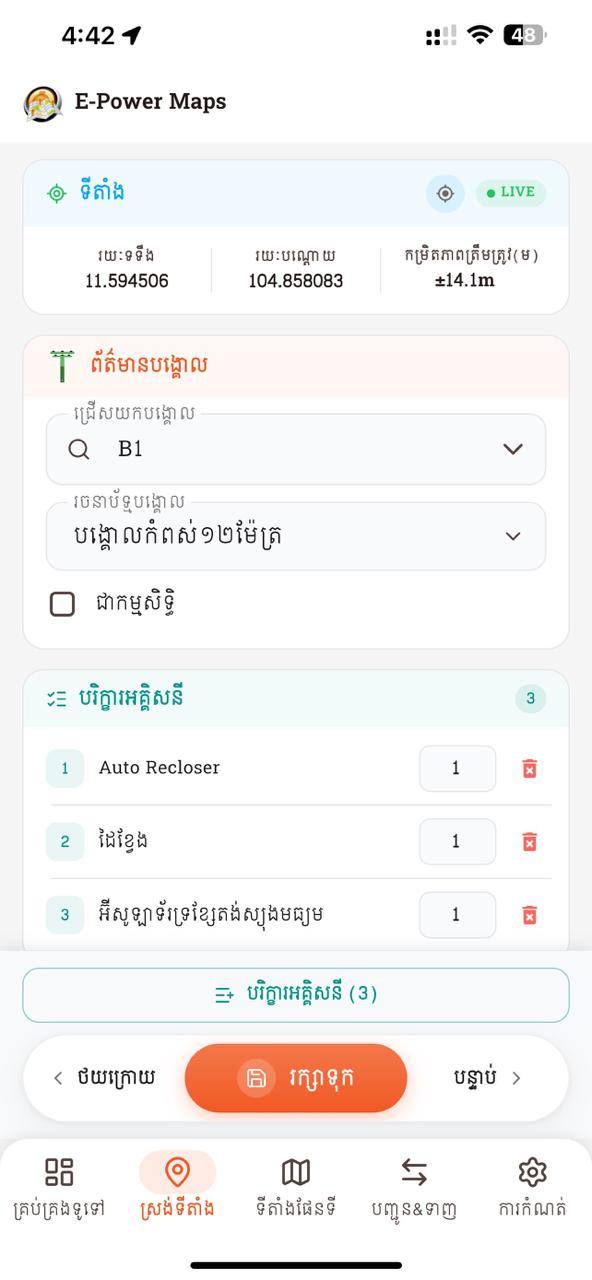

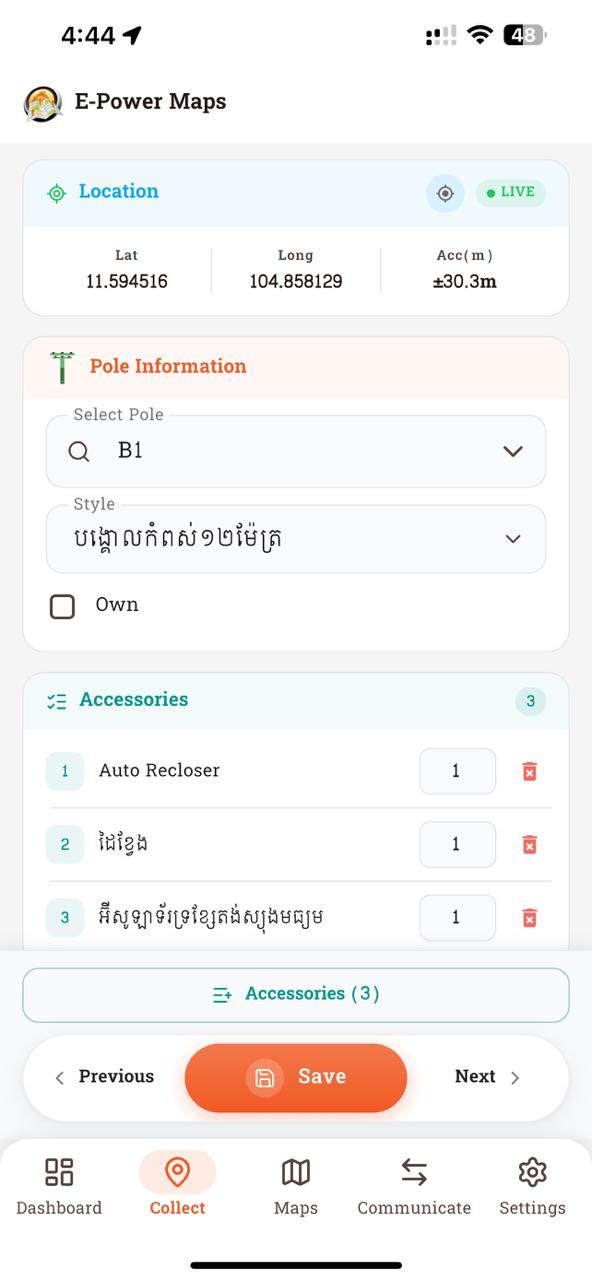

The Collect screen

1Location card — live latitude / longitude / accuracy. Green LIVE badge while the GPS stream is active; tap the refresh icon to force a re-read.
2Pole Information card — search-pick a pole (here: B1), then pick its style (e.g. បង្គោលកំពស់១២ម៉ែត្រ). Tick "Own" if the pole belongs to E-Power.
3Accessories card — each row shows index chip + name + qty input + red trash icon to remove. Header pill shows the live count.
4Sticky bottom bar — outlined accessory-count button above a Prev / Save (orange pill) / Next row. Save persists locally and posts when online; queues to pending-sync when offline.
5Bottom nav — Dashboard / Collect (active) / Maps / Communication / Settings. Tap Maps to launch Google Earth from the latest data.

Try it yourself

Open Collect; list orders by area then pole name.
Type a partial name → only matching poles appear; "Add New Pole" entry shown.
Create new pole with duplicate name → rejected with required/duplicate error.
Capture GPS for a fresh pole → values live-update; accuracy shown.
Reopen collected pole → live updates stop; stored coords shown in primary color.
GPS color cue: poor signal shows coords in red and Save is blocked; good signal turns them white and Save is enabled.
Add one accessory + apply one package → quantities correct; remove = soft-delete.
Save → record persists, advances to next pole, syncs or queues.
Toggle offline → save succeeds; go online → record posts automatically.

3. Maps / KMZ Export

The KMZ generator has been rewritten end-to-end: it composes Google Earth output entirely from current PoleStyle / CableStyle catalog data — no more hard-coded blue/red icons. Pole markers are tinted from a single white outline icon, cables come from real TblCablePlace records, and a LOD-swap keeps icons readable from continent zoom down to street level.

KMZ generated inside the app from collected data using the archive package.
Per-PoleStyle <Style> blocks: ic_pole_outline.png is tinted via <IconStyle><color> channel multiplication; scaled by icon_scale.
LOD-swap: two Placemarks per pole (far & near) inside a <Folder> with checkHideChildren, swapping at 300 pixels — one entry per pole in the Earth list.
Cables drawn as LineStrings: startPoint → ordered details → endPoint (no Region gating, so long lines don't disappear when midpoint goes off-screen).
Cable color + width from CableStyle (LineColor, LineWidth, Diameter).
Transformer placemarks render at the linked Place's coordinates (since tbl_transformer has no own coords, only place_id).
Color encoding: SQLite stores AARRGGBB (Flutter Color.toARGB32); _argbHexToKmlColor swaps R↔B to AABBGGRR for KML.
Online refresh: when reachable, openGoogleEarth() calls _syncAllDataForMaps() to pull the latest places/transformers/cables before rendering.
Offline fallback: reads cached tbl_place / tbl_transformer / tbl_cable + tbl_cable_detail.
Bundled assets in KMZ: ic_pole_outline.png + fallback ic_pole_blue/red + transformer icon.

Layer-by-layer KMZ structure

maps.kmz (zip)
├── doc.kml
│   ├── <Style id="poleStyle_<id>">        ← per PoleStyle (tinted ic_pole_outline)
│   ├── <Style id="poleStyleNear_<id>">    ← same icon at ~35 % scale for near zoom
│   ├── <Style id="cableStyle_<id>">       ← per CableStyle (LineColor + LineWidth)
│   ├── <Style id="polePairFolder">        ← ListStyle: checkHideChildren (1 row / pole)
│   ├── <Folder name="Poles">
│   │   └── <Folder> per pole (#polePairFolder)
│   │       ├── <Placemark> far variant — maxLodPixels=300
│   │       └── <Placemark> near variant — minLodPixels=300
│   ├── <Folder name="Cables">
│   │   └── <Placemark> per cable — LineString(start → details[order] → end)
│   └── <Folder name="Transformers">
│       └── <Placemark> per transformer at its place_id's lat/lng
└── icons/
    ├── ic_pole_outline.png    ← single white-fill icon, tinted at render time
    ├── ic_pole_blue.png       ← fallback when no PoleStyle assigned
    ├── ic_pole_red.png        ← fallback for "not collected"
    └── ic_transformer.png

Tips: (a) clamp(0.7, farScale) crashes when admin sets iconScale < 0.7 — code uses plain if-conditionals instead. (b) Near scale floor is 0.7 except when farScale is already smaller. (c) PoleStyles with unset iconScale render at 0× until a value is saved — defaults to 2.5 only when value is 0 or absent.

Try it yourself

Generated KMZ opens correctly in Google Earth / Pro.
Coordinates on map match those captured in Collect.
Each pole rendered in its PoleStyle color + scale.
Zoom in from country level → icons shrink at ~300 px boundary; zoom further to street → labels appear.
Pole list (left panel in Earth) shows one row per pole — no duplicate near/far entries.
Cable lines follow real start → details (ordered) → end path; long cables stay visible when midpoint is off-screen.
Cable color + width reflect their CableStyle.
Transformers appear at the host pole's location with name label.
Re-open Maps while online → newly collected places appear; offline → cached snapshot still opens.

4. Communication — Data Sync

The biggest architectural change: USB/TCP socket has been replaced with a REST API, and offline + auto-sync are first-class.

HTTPS REST API via Dio. Base URL overridable via Developer Mode.
Export to server: POST /Sync?type=import — bulk JSON payload (style, accessory, package, packageDetail, place, placeDetail, transformer). is_new flag drives server INSERT vs UPDATE.
Import from server: POST /Sync?type=export → _importServerData() wipes + reinserts each catalog table; pending-sync queue cleared (server is now authoritative).
DistributionMethod auto-refresh: importFromServer() also calls /Lookup/Distributions and replaces tbl_distribution_method so the LineStyle picker stays offline-usable.
Per-entity REST writes during Collect/Admin: /Accessory, /Place, /Place/Collect, /Pole, /Style, /CableStyle, /TransformerStyle, /Cable, /Transformer, /Package. Header App-Id = tenant.
Pending-sync queue (tbl_pending_sync) + auto-sync via ConnectivityService. Triggers: connectivity restore, 3-min periodic, app resume.
Connectivity treats any non-none result as online (wifi/mobile/ethernet/vpn/other) — previously VPN was misread as offline.
SyncBloc phases: idle → exporting → importing → completed | failed.
Every attempt logged to tbl_sync_history with type/item-count/status/error.
Maps export piggy-backs: openGoogleEarth() runs a silent sync first when online so the KMZ reflects fresh server state.

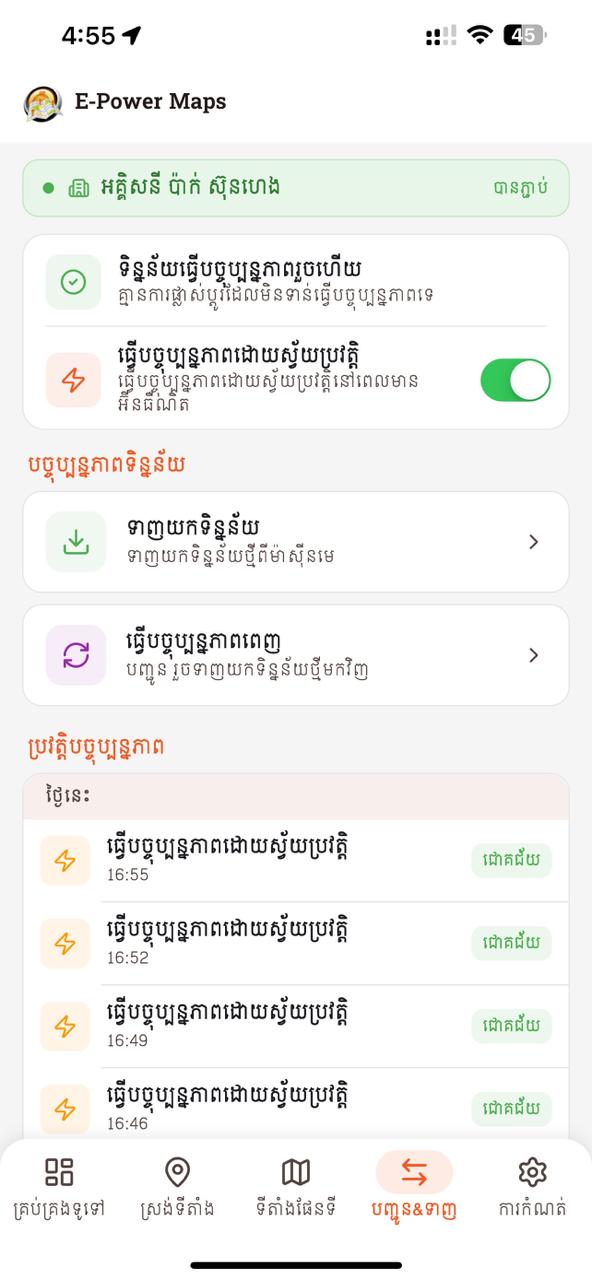

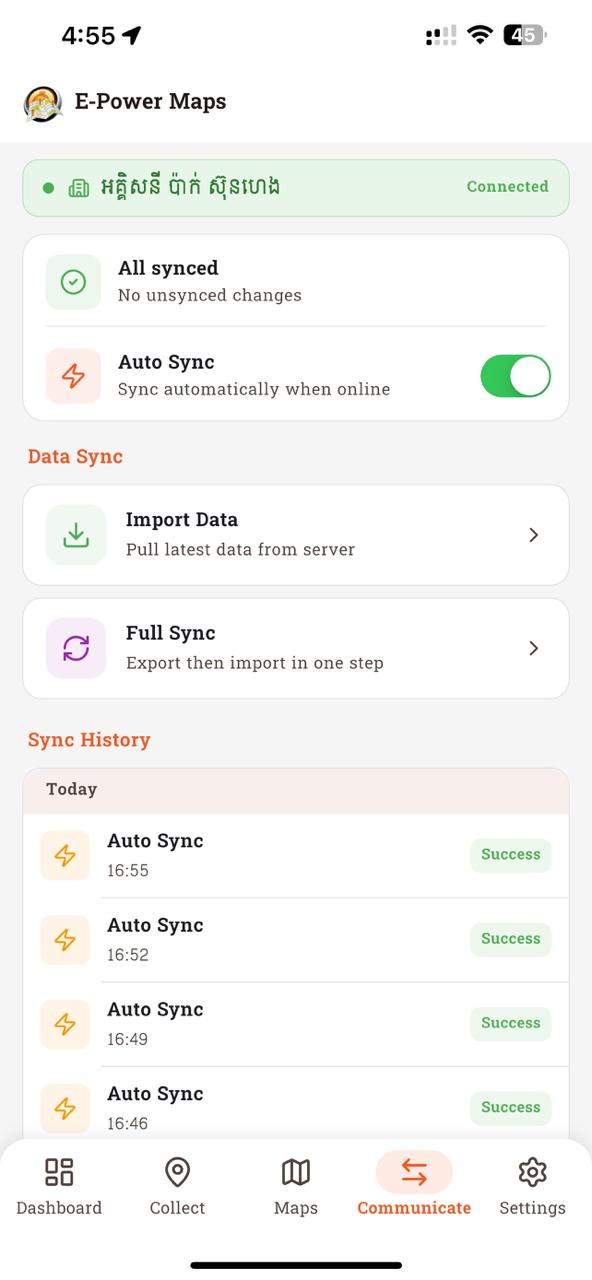

The Communication screen

1Tenant chip — green when an organisation is registered and reachable (e.g. អត្តសញ្ញាប័ណ្ណ ស៊ីនហេង · Connected). If empty, prompts you to register one.
2Sync status card — shows "All synced" (no pending) or "n pending changes" with a Sync button. The Auto Sync toggle controls whether the app uploads automatically when connectivity returns.
3Data Sync — two action tiles: Import Data (pull latest catalog from server, also refreshes Distribution Methods) and Full Sync (export then import in one run).
4Sync History — grouped by date (Today / Yesterday / earlier). Each row shows the sync type ("Auto Sync" / "Full Sync" / "Import"), the time, and a green Success / red Failed pill.
5Bottom nav — Communicate tab active (orange pill background). Tap any tab to switch instantly.

Try it yourself

Full Sync → pulls latest catalogs; posts unsynced collections.
Import-only run → catalogs refresh, in-progress collections untouched.
Offline create → Pending queue; online → auto-sync, Sync History shows success.
Force 4xx/5xx → Sync History captures error; queue keeps item for retry.
KMZ export produces a valid file that opens in Google Earth.

5. Accessories

Full CRUD with pagination, search, selection mode.
Add enabled — writes hit /Accessory endpoint when online.
Offline creates queue to tbl_pending_sync; auto-flush on reconnect.
Same soft-delete semantics (is_active).

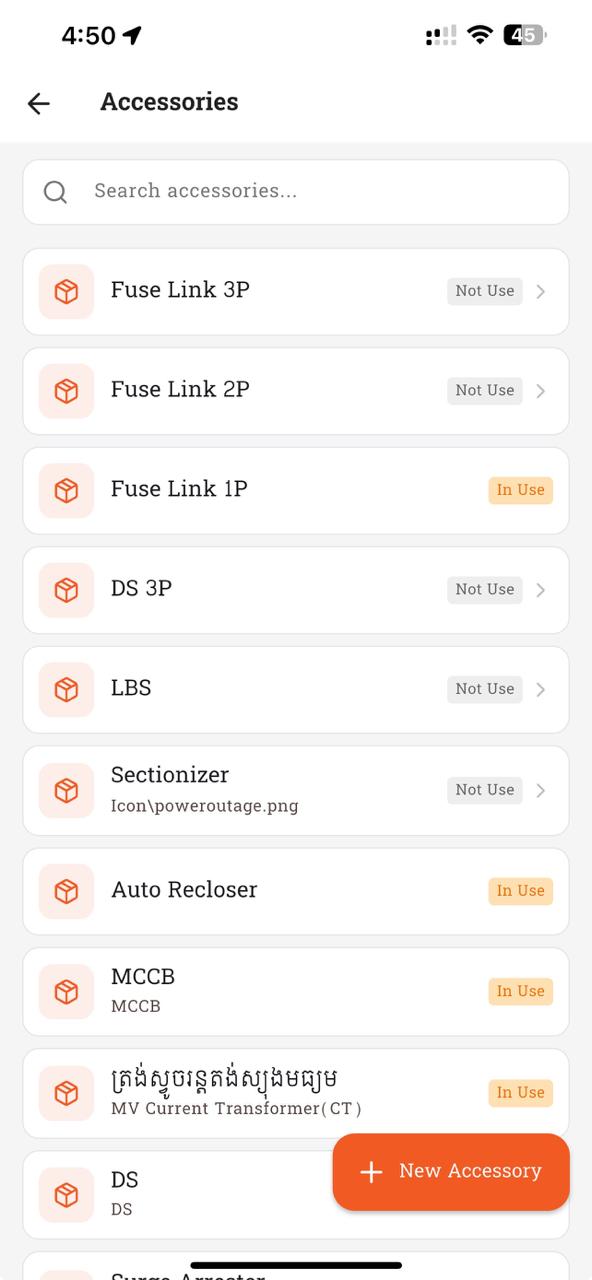

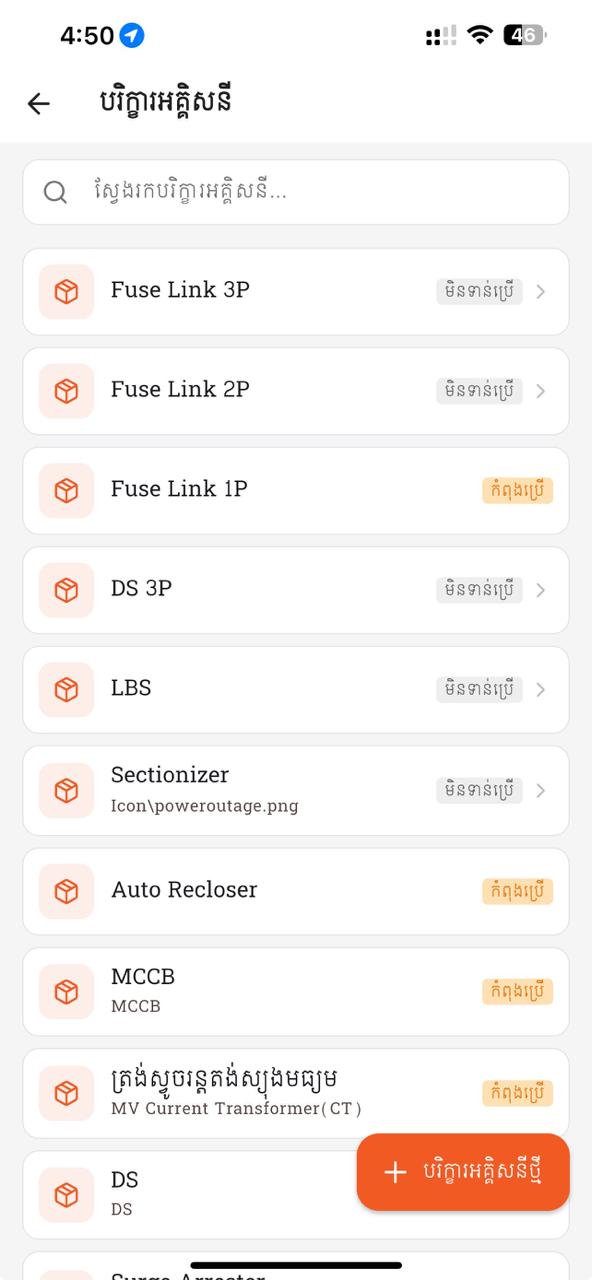

The Accessories screen

1Search box at the top — type to filter accessories by name (e.g. Fuse, MCCB, Auto Recloser).
2Each row shows the accessory icon, name, optional sub-label (image path or code), and a status pill: gray "Not Use" or orange "In Use". The pill comes from the server — an accessory is "In Use" when at least one active Place or Package references it.
3Tap any row to open the detail page (edit name / note, soft-delete). Long-press to enter selection mode for batch actions.
4Orange "+ New Accessory" floating button at bottom-right opens a sheet to create one. Saves go straight to /Accessory when online, or queue offline.

Try it yourself

Create a new accessory → appears in list, posted to API, visible on web.
Edit existing → name/note changes persist; round-trip to server.
Soft-delete → hidden from list but retained in DB (is_active = 0).
Offline create → queued; online → queued item syncs.

6. Packages

Same name + accessory rows + quantity model.
Same cascade semantics via PackageRepository.
Applying a package in Collect adds all PackageDetail rows as PlaceDetail (skipping duplicates).

Try it yourself

Create package with 3 accessories + quantities → Collect apply adds same 3 PlaceDetail rows.
Edit: add one, remove one, change qty → next apply reflects changes.

7. Places

Same ordering rule.
Same uppercase + duplicate-name enforcement.
Distinct-area picker presented as a sheet.

Try it yourself

New place with lowercase input → saved as UPPERCASE.
Duplicate pole name → rejected with same-name error.
Area picker suggests existing distinct areas.

8. Pole Style

Full CRUD enabled.
is_active added → supports soft-delete for styles as well.
PoleStyle controls KMZ output: line_color (AARRGGBB), line_width, icon_scale, altitude, label_color, label_scale, label_opacity. Re-labelled in UI to "Pole Color / Size" (line_color/width control the pole MARKER, not the cable line).
Save validation: only name, altitude, line_color, and line_width are required.

Try it yourself

Create / edit / delete style; server reflects the change.
Edit a style → save → POST/PUT actually fires (verify with network log).
Change Pole Color → KMZ pole markers in Google Earth reflect the new color.
Change icon_scale → marker visibly larger/smaller at the same zoom.

9. Transformers

Full CRUD enabled.
Pole association (place_id) preserved.

Try it yourself

Create transformer linked to a pole; pole association persisted.
Edit / delete transformer; server reflects change.

14. Multi-Tenant ➕

Register via QR scan (mobile_scanner); list persisted in SharedPreferences.
Per-tenant SQLite file: MobileDB_<tenantId>.db.
Switching re-opens DB and updates App-Id header on all future requests.
All blocs reload after tenant switch; rename / remove supported.

Screen layout — Tenant management

Flutter — Manage Tenants

Current tenant · Scan QR / Manual · Registered list

10:45📶 🔋

‹ Manage Tenants

🏢

E-Power CCL

app-id: acme

Registered Tenants

🏢

E-Power CCL

acme

Active ✎

🏢

Sihanoukville EDC

sv-edc

›

🏢

Battambang Grid

bb-grid

›

1Current tenant card at top with "Disconnect" button (red outline)
2Two outline buttons: Scan QR (camera) + Manual (keyboard). Manual opens a bottom sheet with name/ID fields.
3Active tenant — 2px orange border + "Active" pill + edit icon. Others are tappable rows with chevron, swipe-left to delete.

Try it yourself

Register Tenant A via QR → data isolated in DB_A.
Register Tenant B → DB_B separate and empty of A's records.
Switch A ↔ B → lists repopulate correctly, no cross-contamination.
Rename / remove tenant → persists across app restart.

15. Settings ➕

Language: Khmer / English (Khmer is default).
Theme: Light / Dark / System.
Primary color picker + font family (7 Khmer fonts) + font size.
App version displayed; 7 taps on version unlocks Developer Mode.

Screen layout — Settings

Flutter — Settings

Collapsing header · grouped cards · theme previews · color palette

10:45📶 🔋

⚡

E-Power Maps

v2.2.6

🏢Contact

📞 010 65 99 00

📞 090 65 99 00

🌐Language

🇰🇭ខ្មែរ✓

🇬🇧English

🎨Appearance

Theme Mode

Light

Dark

✓

System

Primary Color ›

Font Size

Font Family Kantumruy Pro ›

📊Dashboard

📍Collect

🗺Maps

↔️Comm

⚙️Settings

1Collapsing hero header (220 → 56px) with app icon, name, version badge over an orange gradient
2Theme Mode: 3 mini-preview cards (Light / Dark / System). Selected card has 2px orange border + checkmark badge.
3Primary color tile opens a bottom sheet with 12 swatches; Font Family opens another sheet with font previews
4Font Size is a 3-way segmented control (S / M / L), selected has solid orange background
5Version badge in the header is the 7-tap trigger for Developer Mode

Try it yourself

Change language → UI re-renders immediately across all tabs.
Toggle theme; confirm on admin / communication / collect pages.
Swap font + size; Khmer rendering remains correct.
7-tap gesture + year PIN unlocks Developer page.

16. Developer Mode ➕

Gated by 7 taps on version + current-year PIN (e.g. 2026).
PIN entry is now a full-screen page (not a dialog): 4-digit dot indicator + numeric keypad + haptic feedback on wrong entry. Replaces the old AlertDialog.
Add / activate alternative API base URLs (staging / prod / custom). Persisted in tbl_dev_base_url.
Toggle biometric authentication (currently commented out behind a TODO — local_auth wired but feature gated off).

Try it yourself

Unlock → override base URL → all requests use the new URL after save.
Enable biometric → next cold start prompts for fingerprint / Face ID.

17. AI ERA Chat & Voice ➕

In-app AI chat assistant.
Speech-to-text input via speech_to_text.

Try it yourself

Open AI ERA → chat loads; send message → response rendered.
Voice input transcribes Khmer / English correctly.

18. Navigation Map

StatefulShellRoute.indexedStack with 4 bottom tabs.
Tabs (in order): Dashboard / Collect / Maps / Communication / Settings.
Admin sub-pages pushed above the shell.
Splash → Collect on cold start.

Screen layout — Navigation

Flutter — Bottom tabs (5)

Pill-style active state · rounded top · brand orange

10:45📶 🔋

⚡ E-Power Maps

Current: Dashboard

Tap any tab to switch instantly

Main destinations (5 tabs)

📊Dashboard

📍Collect

🗺Maps

↔️Comm

⚙️Settings

Pushed above shell (root-level pages)

🏢 Tenant 🔧 Dev 🤖 AI ERA 📊 Analysis

📊Dashboard

📍Collect

🗺Maps

↔️Comm

⚙️Settings

15 tabs (in order): Dashboard · Collect · Maps · Communication · Settings
2Active tab = orange pill background + bold label (brand colour #F15A23)
3Nav bar has rounded top corners (20px) + top shadow, floating above screen
4Sub-pages (Tenant, Developer, AI ERA, Analysis) push above the shell — bottom nav hidden
5Each tab has its own back-stack, preserved on tab switch

Try it yourself

All tabs reachable from anywhere via bottom nav.
Push/pop preserves state within a tab.

10. Cable Style ➕

Catalog vertical added so admins can define cable appearance (color, width, diameter) and electrical attributes (distribution method, shielded, underground). Backend names this entity CableStyle; the mobile UI keeps the user-facing "Line Style" wording, with only the wire contract using the backend name.

Routes: /admin/line-styles (list) + /admin/line-styles/:id (detail).
Form fields: styleName, lineColor (AARRGGBB picker), lineWidth (sheet picker 0.5/1/1.5/2/2.5/3), diameter, altitude, distributionId (DistributionMethod picker — REQUIRED *), isUnderground, isShielded.
DistributionMethod picker is backed by tbl_distribution_method (three-layer cache, see 3.18).
REST: /CableStyle (GET list/byId, POST add, PUT update, DELETE list). Header App-Id = tenant.
Backend marks IsInused = ANY TblCablePlace.StyleId. Delete rejected when in-use.
DB-side: tbl_line_style (dbVersion 17) — id, name, line_color, line_width, diameter, altitude, distribution_id, is_underground, is_shielded, is_active, is_new.
Drives KMZ cable rendering: cableStyle_<id> Style block (LineColor + LineWidth) applied to each cable LineString.
Backend orders DESC; mobile list shows IsInused chip on each row.

Try it yourself

Create cable style → list shows new entry; KMZ cable lines using it render with the chosen color/width.
Distribution-method field shows red * and rejects save when empty.
Mark IsShielded → persisted; verify on server side.
Delete a cable style currently referenced by a cable → server rejects with in-use error; mobile shows snackbar.
Admin overview tile shows Cable Style count from /Dashboard.

11. Transformer Style ➕

Catalog vertical for transformer marker styling (icon, label color, scale, opacity). Mirrors PoleStyle but for transformers. Backend route /TransformerStyle. Currently IsInused is hard-coded false server-side — TblTransformer has no StyleId FK yet.

Routes: /admin/transformer-styles + /admin/transformer-styles/:id.
Form fields: styleName, iconHref, iconScale, altitude, labelColor, labelScale, labelOpacity. No "In link" / image upload column (mobile cannot upload icons).
REST: /TransformerStyle. Backend orders DESC. IsInused hard-coded false (FK pending).
DB-side: tbl_transformer_style (dbVersion 18).
Admin tile + count + Lucide icon.

Try it yourself

Admin menu → Transformer Style → list opens (no 404).
Create / edit / delete; counts in Admin overview update.
Save with default values succeeds — no "required field" false-negative.

12. Cable + Details ➕

A new read-side catalog so the KMZ generator draws cable lines from real, ordered records instead of inferring connectivity via nearest-neighbor. Each cable has a start place, end place, and ordered intermediate stops (details). The mobile keeps no dedicated CRUD UI — admins create these from the desktop / web; mobile only caches them for offline KMZ generation.

REST: GET /Cable (list with details inlined), GET /Cable/{id}, POST/PUT/DELETE.
Backend single-query detail hydration via GroupBy on TblCablePlaces → no N+1; details ordered by order_id.
DB-side: tbl_cable + tbl_cable_detail (dbVersion 19).
Mobile sync strategy: wipe + reinsert on each refresh (cable count is small; diff would be more code than value).
Consumed by lib/core/utils/maps_launcher.dart to walk start → details[order_id] → end and emit one KMZ LineString per cable.
Each cable references a CableStyle (3.15) which supplies its color/width in KMZ.

Try it yourself

Server has a cable with 3 ordered details A → B → C → D → KMZ draws 3 segments in that order.
No nearest-neighbor lines appear when an admin pole has no real cable record.
Offline KMZ uses cached tbl_cable; cable lines still render.

3.18 Distribution Method ➕

A small, read-only enum backing the CableStyle distribution picker. Designed to stay offline-usable after the first online fetch — so an admin can still pick "underground / overhead / …" in the field. Persisted via a three-layer cache.

DistributionMethodRepository.getAll({refresh})
  │
  ├─ Layer 1 ─ in-memory _cache (List<DistributionMethodModel>?)
  │            ↳ cheap repeat lookups within a session
  │
  ├─ Layer 2 ─ SQLite tbl_distribution_method  (dbVersion 20)
  │            ↳ survives app restarts → offline launches resolve names
  │
  └─ Layer 3 ─ GET /Lookup/Distributions  (read-only enum)
               ↳ source of truth; refreshed during EMapSyncRepository.importFromServer()

No dedicated CRUD UI — only consumed by the LineStyle/CableStyle picker.
RepositoryFactory.distributionMethod returns local-only repo when no tenant; tenant-aware repo (with api + connectivity) when a tenant is active.
getAll({refresh}) flow: in-memory cache → online fetch + DB swap on success → DB fallback on offline / failed network.
On import sync: EMapSyncRepository.importFromServer() calls getAll(refresh: true) inside a try/catch so the bulk sync isn't poisoned by a Lookup failure.
DB swap is wipe-and-insert (enum tiny, rarely changes; diff is more code than value).
Backend: GET /v2/EPowerMap/Lookup/Distributions → List<MapLookupItem> {Id, Code, Name}, ordered by Order ASC.

Try it yourself

First-run online: open CableStyle form → distribution picker lists server values.
Disconnect network → reopen form → picker still works (values from tbl_distribution_method).
Run a sync import while online → tbl_distribution_method refreshed (verify via debug log 🟫 [DistMethodRepo.getAll]).
Lookup endpoint returns 5xx → sync import still completes (catch logs ⚠️ distribution methods refresh failed but proceeds).

A. Data Model

SQLite schema is at dbVersion = 20 (MobileDB or MobileDB_<tenantId>.db for multi-tenant). Each version adds catalog / cache tables: v17 = tbl_line_style, v18 = tbl_transformer_style, v19 = tbl_cable + tbl_cable_detail, v20 = tbl_distribution_method.

Table	Flutter (v20)	Notes
`tbl_accessory`	Same	—
`tbl_style`	+ `is_active`, line_color, line_width, icon_scale, altitude, label_color, label_scale, label_opacity	Soft-delete + KMZ rendering attrs
`tbl_package`	Same	—
`tbl_package_detail`	Same	—
`tbl_place`	Same	—
`tbl_place_detail`	Same	—
`tbl_pole`	➕ pole roster (pole_code, area_code, area_name, …)	Authoritative pole master
`tbl_transformer`	Same (`place_id` linkage retained)	No own coords; rendered at linked pole
`tbl_line_style`	➕ id, name, line_color, line_width, diameter, altitude, distribution_id, is_underground, is_shielded, is_active, is_new	dbVersion 17 — `CableStyle` on the wire
`tbl_transformer_style`	➕ id, name, icon_href, icon_scale, altitude, label_color, label_scale, label_opacity, is_active	dbVersion 18
`tbl_cable`	➕ id, style_id, start_point_id, end_point_id, phase_id, distribution_id, …	dbVersion 19 — KMZ data source
`tbl_cable_detail`	➕ id, cable_id, place_id, order_id	dbVersion 19 — ordered stops along a cable
`tbl_distribution_method`	➕ id, code, name	dbVersion 20 — 3-layer cache for the LineStyle picker
`tbl_pending_sync`	➕ Offline-write queue	Offline support
`tbl_sync_history`	➕ Audit log per sync attempt	Observability
`tbl_ai_chat_session`	➕ session id, title, last_message_at	AI ERA chat
`tbl_ai_chat_message`	➕ id, session_id, role, content, timestamp	AI ERA chat
`tbl_dev_base_url`	➕ Configurable API URLs	Dev tooling

Soft-delete semantics (is_active = 0) retained for every catalog table. Server is source of truth — sync import wipes + reinserts catalog tables; ad-hoc writes go via per-entity REST endpoints and pending-sync queue.

B. Architecture overview

GoRouter shell (4 bottom tabs)
  ├─ CollectPage
  ├─ AdminPage (hub)
  │   ├─ Accessory / Package / Place
  │   ├─ Pole Style / Transformer
  │   ├─ Cable Style / Transformer Style
  │   ├─ Cable / Distribution Method
  │   └─ Analysis (Dashboard)
  ├─ CommunicationPage
  └─ SettingsPage

Pushed above the shell (root-level pages):
  Tenant · Developer · AI ERA · Analysis

Feature modules:
  UI → Bloc → Repository → BaseDao + ApiService

Core:
  tenant/ (per-tenant DB + App-Id header)
  network/ (Dio + interceptors + ConnectivityService)
  data/   (pending-sync queue, sync history, distribution method cache)
  database/ (sqflite + BaseDao singleton)
  theme/, l10n/  (Material 3, en + km)

State: fragments + manual listeners → BLoC with typed Events/States.
DB: GreenDAO → SQLite via sqflite + BaseDao singleton.
Networking: raw Socket → Dio client with App-Id + auth interceptors.
Connectivity: ConnectivityService treats any non-none transport (wifi/mobile/ethernet/vpn/other) as online; previously VPN was misread as offline and forced the offline-queue path.
Caching: three-layer cache pattern (in-memory → SQLite → API) introduced for read-only lookups; first applied to DistributionMethod, designed to extend to other rarely-changing enums.
DI: manual in APP subclass → RepositoryFactory, constructor-injected and tenant-aware: returns local-only repos when no tenant is active, fully-wired (API + connectivity + pending-sync) repos when a tenant is registered.
Maps: MapsLauncher composes KMZ from PoleStyle + CableStyle + tbl_cable + tbl_transformer at runtime; bundles ic_pole_outline.png and tints via KML <IconStyle><color>.
Testing: none → unit + bloc + widget + integration (flutter_test, bloc_test, mocktail, sqflite_common_ffi).

C. Backend API Surface ➕

Authoritative inventory of the EPowerMap* controllers the mobile app talks to. All routes are prefixed with /v2/EPowerMap and require Keycloak auth (App-Id header identifies the tenant). Most lists support isPaging=false to bypass server pagination and return the full collection in one call.

Catalog CRUD

Entity	GET list	GET by id	POST add	PUT update	DELETE list	Notable
Accessory	`/Accessory`	`/Accessory/{id}`	`/Accessory`	`/Accessory`	`/Accessory`	IsInused via PlaceDetail + PackageDetail back-refs
Package	`/Package`	`/Package/{id}`	`/Package`	`/Package`	`/Package`	Details hydrated via LEFT JOIN; replace-on-update
Place	`/Place`	`/Place/{id}`	`/Place`	`/Place`	`/Place`	INNER JOIN to TblPole via `ObjectId`; orphans hidden
Place / Collect	`POST /Place/Collect` — atomic lat/lon/style/ownership + replace PlaceDetails					Wraps a Collect save in one transaction
Pole	`/Pole`	`/Pole/{id}`	`/Pole`	`/Pole`	`/Pole`	Soft-delete ONLY; refuses if a transformer / place / box / meter still uses it
Style (PoleStyle)	`/Style`	`/Style/{id}`	`/Style`	`/Style`	`/Style`	Fields: `LineColor`, `LineWidth`, `IconHref`, `IconScale`, `Altitude`, `LabelColor`, `LabelScale`, `LabelOpacity`
Transformer	`/Transformer`	`/Transformer/{id}`	`/Transformer`	`/Transformer`	`/Transformer`	Eager-loads Brand + Pole via LEFT JOIN; `IsInused` via `TblPole.TransformerId`
CableStyle NEW	`/CableStyle`	`/CableStyle/{id}`	`/CableStyle`	`/CableStyle`	`/CableStyle`	IsInused via `TblCablePlace.StyleId`; orders DESC
TransformerStyle NEW	`/TransformerStyle`	`/TransformerStyle/{id}`	`/TransformerStyle`	`/TransformerStyle`	`/TransformerStyle`	IsInused = false (FK pending); orders DESC
Cable NEW	`/Cable`	`/Cable/{id}`	`/Cable`	`/Cable`	`/Cable`	GET list batch-hydrates Details via `GroupBy` (no N+1); details renumbered on update

Lookups · Dashboard · Sync · Media

Endpoint	Method	Purpose	Returns
`/Lookup/Areas`	GET	Area codes (active only)	`List<MapLookupItem>` ordered by AreaId ASC
`/Lookup/Phases`	GET	Electrical phase enum	`List<MapLookupItem>` ordered by PhaseId ASC
`/Lookup/Distributions` NEW	GET	Cable distribution type — backs the LineStyle picker	`List<MapLookupItem>` ordered by Order ASC
`/Lookup/Poles`	GET	Pole id + area + code (joined to Areas)	`List<MapLookupItem>`
`/Lookup/Transformers`	GET	Active transformers	`List<MapLookupItem>`
`/Dashboard`	GET	Single-shot count card	`DashboardOutfaceModel`
`/Sync?type=export`	POST	Pull catalog from server	`EPowerMapSyncModel`
`/Sync?type=import`	POST	Push bulk payload; idempotent	`EPowerMapSyncModel`
`/UploadIcon`	POST	Upload a marker icon	`IconUploadResult` {AccessUrl, ObjectId, ObjectName}

Server-side guardrails worth knowing

Soft-delete is the rule for catalog tables; hard-delete is rejected when inbound refs exist. If you need to "delete then recreate", use Edit instead.
TblPlace.ObjectId links to TblPole.PoleId (NOT PlaceId); RefId=1 marks pole-collections. Orphans are skipped by /Place.
POST /Place inserts a placeholder StyleId (first available) when the client passes 0 to satisfy the FK.
POST/PUT /Pole inherits AreaCode/CollectorId/BillerId/etc. defaults from a sibling pole in the same area. Mobile-unsafe defaults are silently substituted.
DELETE /Pole refuses if any active transformer, place, box, or customer-meter references it.
Sync import treats DateTime parse failures as DateTime.Now and preserves existing CollectedDate if payload omits it.

Tip: Mobile-side endpoint constants live in lib/core/constants/app_constants.dart; you can swap apiBaseUrl + apiBasePath at runtime via Developer Mode (3.12). Always include the App-Id header that the active tenant pins.

Welcome to EPower Maps

What this guide covers

Overview & field workflow

Admin catalog

Setup & extras

Appendix

Before you start

1. Dashboard & Analysis

The Dashboard screen

Collection Analysis — drill-down

2. Collect — Capturing a pole

The Collect screen

3. Maps / KMZ Export

Layer-by-layer KMZ structure

4. Communication — Data Sync

The Communication screen

5. Accessories

The Accessories screen

6. Packages

7. Places

8. Pole Style

9. Transformers

14. Multi-Tenant ➕

Screen layout — Tenant management

15. Settings ➕

Screen layout — Settings

16. Developer Mode ➕

17. AI ERA Chat & Voice ➕

18. Navigation Map

Screen layout — Navigation

10. Cable Style ➕

11. Transformer Style ➕

12. Cable + Details ➕

3.18 Distribution Method ➕

A. Data Model

B. Architecture overview

C. Backend API Surface ➕

Catalog CRUD

Lookups · Dashboard · Sync · Media

Server-side guardrails worth knowing

D. References
